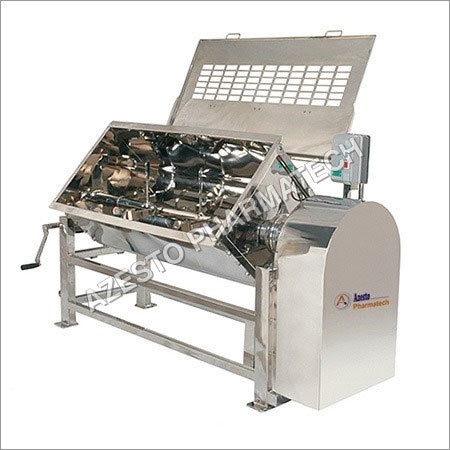

    Mass Mixer

    Mass Mixer
    Mass Mixer
    Product Code : MM-08
    Product Description

    Product Detail:-


    Detachable Paddles for mass mixer machine

    Specifications of Mass Mixer:-


    Shell:-
    Consisting of 'U' trough of suitable dimensions. Construction of S.S. and side plates duly M.S. stiffened from outside and from inside with S.S.

    Mixing Mechanism:-
    Paddle type blades welded to the main shaft provide for efficient mixing of thick heavy material. PTFE gland mechanism provided at shaft ends prevents ingress of external powder into the trough and prevents leakage.

    Charging:-
    From the top charging can be done through a hinge able lid, hopper or Nozzle can be provided for additional spraying of additives.

    Discharge:-
    By bottom discharge slide Iris or Butterfly valve of suitable diameter, for regulated discharge.

    Drive:-
    Consisting of suitable H.P. TEFC 3 phase ac 415v / 50 cycles motor coupled to suitable worm gear, with driving shafts mounted on suitable plummer block.

    Mounting:-
    Mounted on suitable ISMC Section Stand, with protective covers for belts and couplings.

    MOC:- All contact parts in S.S. Constructions. Complete unit with S.S. cover and all surfaces polished to mirror dull finish. MS parts dull painted to smooth finish.

    Options Available:-
    The control panel is mounted on platform and is provided with
    Unit with FLP
    Unit in S.S. 316
    GMP Model with M.S. parts cladded with S.S.


    Technical Specification:-



    MODEL Azesto - MM-50 Azesto - MM-100 Azesto - MM-150 Azesto - MM-200 Azesto - MM-300
    Working Capacity 110 Ltr. 220 Ltr. 330 Ltr. 440 Ltr. 560 Ltr.
    Speed of Stirrer 35 RPM 35 RPM 30 RPM 25 RPM 20 RPM
    Electrical Motor 3hp/2.2Kw/
    144RPM/415 v/50 Hz/3phase
    5 hp/3.7 kw/144 RPM/415 v/50 Hz/3phase 7.5hp/5.5 kw/144 RPM/415v/
    50Hz/3phase
    10 hp/5.5kw/
    144RPM/ 415v/
    50 Hz/3phase
    15 hp/7.4kw/144RPM/
    415v/50 Hz/3phase

    Over alldimmensions in mm

    L x B x H
    1700x740x940
    L x B x H 2300x7400x940 L x B x H 2135x790x1300 L x B x H 2475x100x1500 L x B x H
    2650x1050x1600
    Case dimension in mm 1900x950x1150 1900x950x1150 2350x1000x1500 2475x1000x1500 2650x1050x1600
    Net weight in kgs. 350 450 550 600 700
    Gross weight in Kgs. 450 600 750 850 1000

    We are a Manufacturer, Whole Seller, Supplier, Trader, Exporter of Mass Mixer. We are a leading pharmaceutical machinery manufacturer and supplier from Ahmedabad, Gujarat, India.
