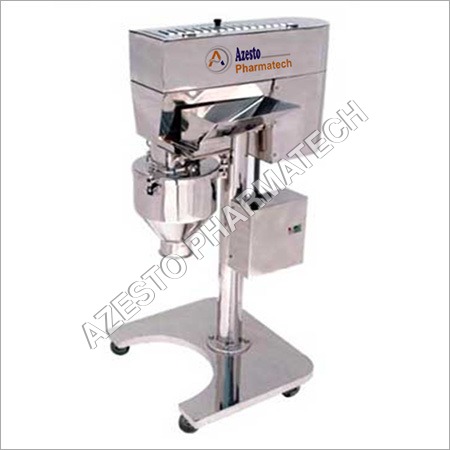

    Multi Mill

    Multi Mill
    Multi Mill
    Product Code : MM - 09
    Product Description

    Multi Mill

    Application & Process:-

    Multi Mill is used for wet and dry granulation, pulverization, milling, shredding, chopping, size reduction in Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colors, Dyestuff, Food products etc. It also finds application in Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastics and Resins industries.


    In multi mill particle size reduction is done through impact in air, on material by blades moving at high speeds, inside a cylindrical sieve. The particles of the desired size pass out through the screen placed inside the hopper.


    Operation:-

    SS beaters having knife and impact edges rotate within a selected screen
    The material fed in the hopper enters into the processing chamber where it moves to the pentery and passes through screen
    Output & quality of final products depend on (I) shapes of beaters (Knife/ impact edge) (ii) speed (iii) size of screen


    Salient Features:-

    Design is cGMP - Current Good Manufacturing Practices compliance
    All Product contact parts AISI 316 & non contact parts AISI 304
    High speed milling, granulating, pulverizing, mixing and size reduction of wet & dry material.
    Output capacity 50 Kg to 200 Kg per hour..
    Easy removable contact parts for cleaning & inspection.
    Easy Mobility.
    Variable force by swing better having knife & impact edges are rotating within screen.
    Direction of beaters can be changed by forward- reversible switch.
    Various combinations of perforated sieves & wire mesh.

    Optional Features :-

    AC frequency drive for variable speed.
    Belt less Drive
    Inline milling process with HSMG and Sifter
    Flame Proof electrical.

    Safety Features:-

    Over load protection.

    Technical Specification of Multi Mill Machine:-

    Machine Type

    Azesto - MM - 200

    Out put

    50 Kgs To 200 Kgs/hour

    Rotor assembly dia

    250 mm (approx)

    Rotor speed

    750 / 1500 / 2300 / 3000 r.p.m.

    Beaters

    12 knife & impact edges & 2 scrapper blades

    Screen dimensions

    Iinner diameter-260 mm, ht-135 mm

    Motor

    TEFC, 3 h.p., 1440 .p.m., 440 v.,
    50 cs, 3 hp, a.c. supply

    Starter

    "Dol" with reversible switch

    Material charging height

    1445 mm (Approx)

    Overall Dimensions (mm)

    870 x 965 x 1630 mm Ht.

    Net Weight

    275 Kgs. (approx)

    Gross weight

    425 kgs. (approx)

    Case dimension (mm)

    1200 mm x 1550 mm x 1860 mm (ht)


    Note : Specification and features of the machineries are subject to change without any prior notice
