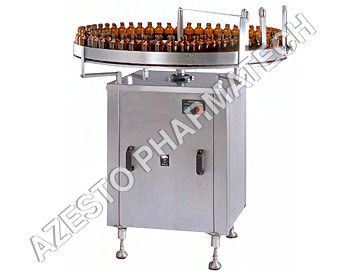

    Pharmaceutical Turn table

    Pharmaceutical Turn table
    Pharmaceutical Turn table
    Product Code : PTT - 89
    Brand Name : AZESTO
    Product Description

    Pharmaceutical Turn table

    Product Detail:-

    Stainless steel scrambler & un scrambler, which is familiar as turn table. This is built on SS square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable is useful to unsure total synchronization, uniform flow of container and to take a turn at 90 degree to suit different machine and purpose in automatic liquid line.



    Operation:-

    Container inputs in turn table by manually or automatic will rotate on disk of turn table and exit through outlet, during rotation of container will guided by a SS strip, which will guide the container towards outlet path.


    Technical Specifications:-

    Model

    Azesto - 30

    Azesto - 36

    Azesto- 42

    Direction Clockwise / Anti clock wise as per requirement
    RPM of Disk 4/5/6 through step pully
    Power Characteristics 0.5 HP / 415 V / 50 Hz
    Height of Disk 860 mm to 910 mm
    Machine Dimensions 780 x 780 x 1160 925 x 925 x 1160 1076 x 1076 x 1160
    Case Dimensions 975 x 975 x  1300 1125 x 1125 x 1300 1300 x 1300 x 1300
    Net Weight 150 kgs. 175 kgs. 200 kgs.
    Gross Weight 300 kgs. 350 kgs. 400 kgs.

    ** Can be supplied as per customer's requirement.


    Input Specification:-

    Container Size Round Shape Ø22 mm to Ø100 mm
    Respectively height 58 mm to 240 mm
    (Height option for other bottle height available)


    Salient Features:-

    Construction AISI S.S.304 quaility.
    Three step pully for different speed.
    Special self-aligning bearings ensure smooth and trouble free operation.
    Suitable for different type of container.
    S.S. elegantly matt finished body.
    Reduction gears ensure jerk free and noiseless operation.
    Matt Finished body.

    Optional Features:-

    Castor Wheel with lock
    A/c Frequency Drive
    Acrylic Cover
    Tray for loading or unloading of container
    Utility Requirement:-

    Electrical Supply : Three Phase + Neutral + Earthing
    Electrical Load : 0.5 KW
