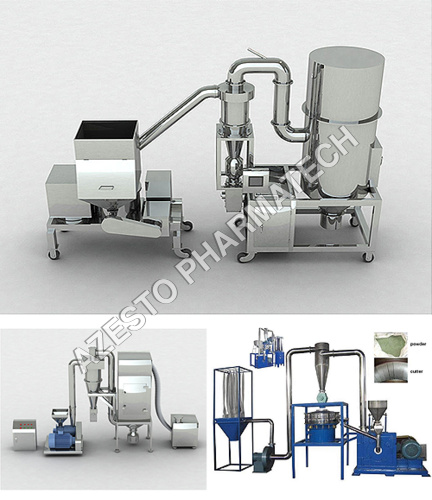

    Pulveriser

    Pulveriser
    Pulveriser
    Product Code : P - 93
    Product Description

    Pulverizer

    PULVERIZER is for.

    Industries Type:
      Chemical:
      Agriculture:
      Minerals:

      Metal:
      Other:
      Materials
      Pigments, Intermediates, Dyes, organic, etc
      Spices, Guar gum, Flour, Black Gram, Sandalwood, Herbal,   Turmeric etc.
      Bauxite, Calcite, Coal, Lime Stone, Soap Stone, China Clay,   Dolomite, Bentonite,   Gypsum, POP, Marble etc.
      C.I. Powder, Ferro Alloys, Zinc Dross, Brass Dross, etc.
      Pesticides and Insecticide Prawn Feed, Precipitated Silica,   Carbon Black etc

    Know process of PULVERIZER

    Pulverization is done by continuous impact of rotating hammers against liners. Raw material feed in rotary feeder from inlet hopper and spills into the grinding chamber. Strong hammering breaks lumps into small particles. At the same time air stream blowing through the pulverizer carries the ground material towards outlet. Whizzer classifier doesn’t allow oversize particles to pass and returned them into the grinding chamber. They are re-grind and reduced up-to acceptable size. Fan is working for convey particles passed from Whizzer and send it to cyclone collector. Three-way connection Cyclone & dust collector (fabric type) provides clear air to the mill and keeps entire operation free from dust too.



    What are Major units and of PULVERIZER

    MAIN BODY:

    Main body (grinding chamber) made out of CI. It includes replaceable grinding liner/plates of different require shapes for different material. Metal trap would remove heavy foreign material.



    FEEDER:

    Automatic feeder having with variable speed star Feeder is provided for controlled feed.



    ROTOR:

    Rotor is made from thick plate fitted on main shaft. Hammers are hinged on it. It prevents breakage of hammers. Main shaft is supported by heavy-duty bearings fitted in dust tight housings.



    WHIZZER:

    whizzer is conical shaped having adjustable whizzer blades for adjust desire fineness in the range of 100-300 meshes, depending upon the material.



    BLOWER:

    Blower is heavy-duty long life bolted blade to get replace quickly.



    CYCLONE COLLECTOR:

    Made for excellent and efficient separation.



    DUST COLLECTOR:

    Retain fine particle as well as control dust with help of bag house.



    PULVERIZER is to reduce particle size. It is to convert lump or big particles of different material into fine powder of below mention material.



     Product:
      Chemical:
      Agriculture:
      Minerals:

      Metal:
      Other:
      Materials
       Pigments, Intermediates, Dyes, organic, etc
       Spices, Guar gum, Flour, Black Gram, Sandalwood, Herbal, Turmeric etc.
       Bauxite, Calcite, Coal, Lime Stone, Soap Stone, China Clay, Dolomite, Bentonite, Gypsum, POP, Marble etc.
       C.I. Powder, Ferro Alloys, Zinc Dross, Brass Dross, etc.
       Pesticides and Insecticide Prawn Feed, Precipitated Silica, Carbon Black etc.

    Below mention models specification is for Standard models. Machine design is very to suit material grinding requirement.



    Ask us to know other detail.


    Tridev Pulverizer range and specification


    Model
    Fitness
    Output Range
    Motor
    RPM

    Mesh Size
    Kg/hr
    HP
    (M/C)
    Azesto-P-42
    Azesto-P-32
    Azesto-P-25
    Azesto-P-20
    Azesto-P-16
    Azesto-P-12
    75-100
    75-100
    75-100
    75-100
    100-300
    100-300
    600-1500
    400-900
    150-450
    80-300
    80-100
    50-60
    80-100
    50-60
    20-30
    15-20
    10-15
    7.5
    1800
    1800
    2000
    2200
    2800-3500
    2800-3500

    Contact us to know about other available options.
    Motor HP and Production is totally depends on property of material and require fineness.
